Real 3D: vertex & fragment shaders

Until now your shader painted a flat rectangle. A real 3D object is a mesh: thousands of triangles made of vertices. Two programs of yours now run:

1. Vertex shader: runs once per vertex. Its job is to decide where that vertex lands on screen. This is where you can move vertices: waves, wobble, growing, twisting.
2. The GPU then fills each triangle with pixels, and for every pixel interpolates (blends) the values the three vertices produced.
3. Fragment shader: runs once per pixel, exactly the function you have been writing, but now it also receives those interpolated values.

On this page, Three.js (a JavaScript 3D library; think of it as a friendlier cousin of what you did in LWJGL) supplies the mesh, the camera and the mouse-orbit controls, and runs your HLSL on it. Drag the output to orbit; pinch or scroll to zoom.

What your fragment shader can read

Name	Meaning
uv	the mesh's texture coordinates (0..1), interpolated
i_normal	surface direction in world space, smooth (unit length)
i_faceNormal	the flat normal of the triangle (faceted look; correct even after you move vertices)
i_worldPos	position of this pixel in the world
i_viewDir	unit vector from this pixel towards the camera
time	seconds

(Those i_ names are this site's; in Unity they come from your v2f struct. The “Copy for Unity” button writes that code for you.)

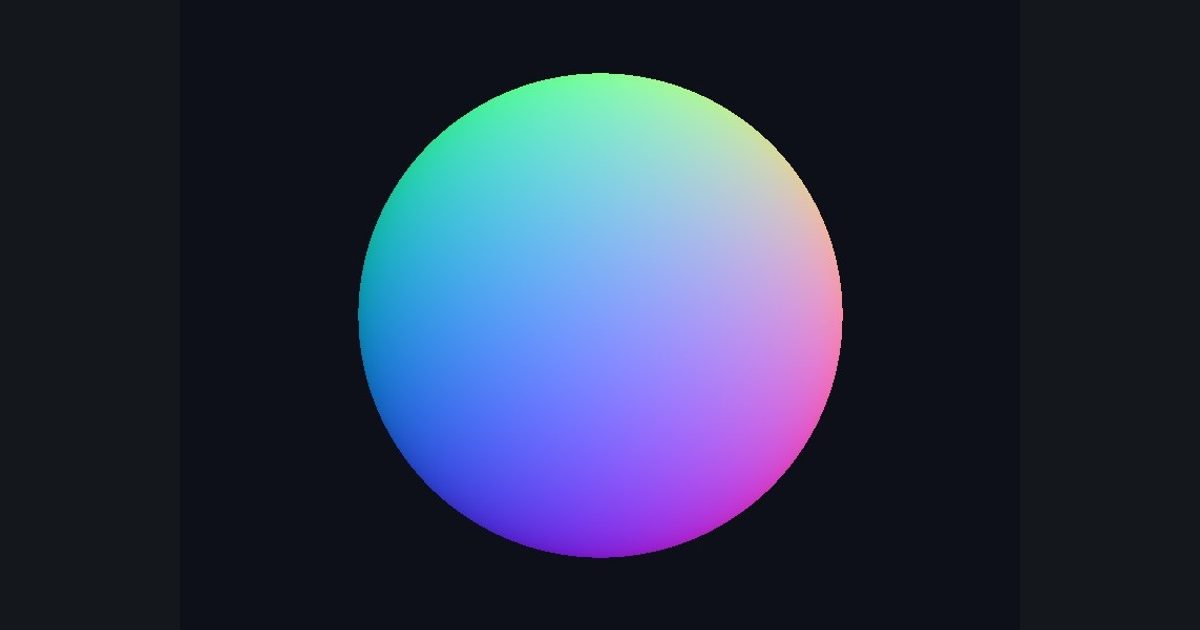

A normal's components are in −1..1, but colors want 0..1. The classic fix is 0.5 + 0.5 * normal. This “normal color” view is how graphics programmers check geometry.
