Diffuse light on a torus

You will build: Light the torus from one direction with a little ambient light.

Start this lesson All lessons

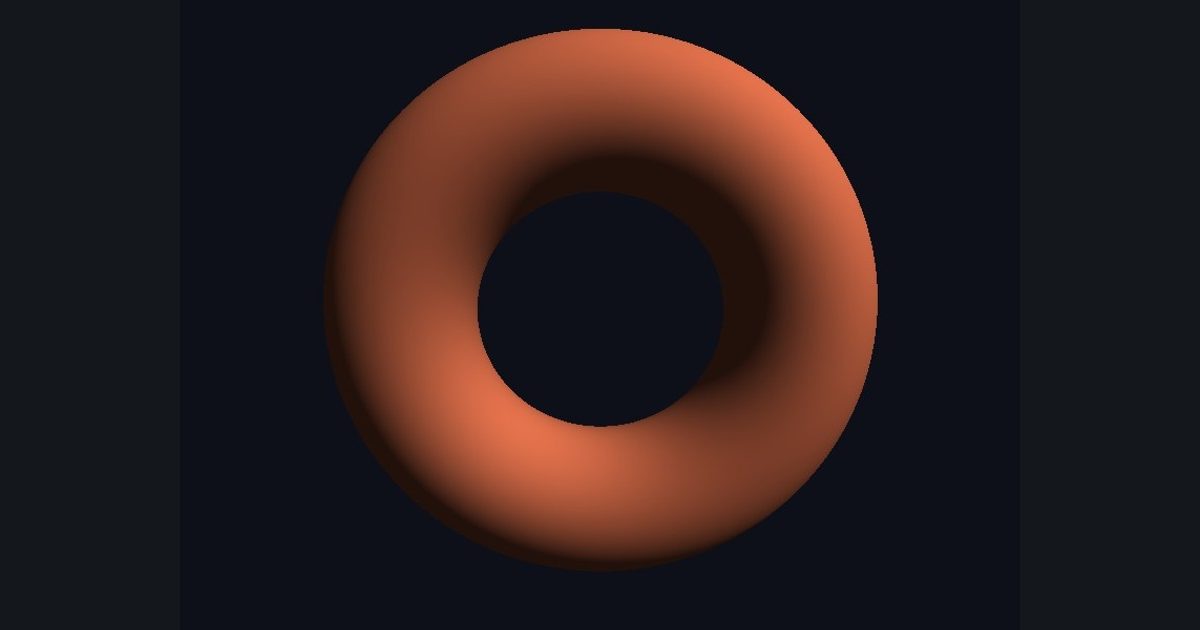

The picture produced by the shader in the lesson "Diffuse light on a torus"
The target picture. In the lesson you write the shader that draws it, and a match bar shows how close you are.

Same idea as the fake sphere earlier, but now the normal comes for free from the mesh: diffuse = max(dot(normal, lightDir), 0.0). Brightness is the cosine of the angle between the surface and the light.

Notice you did not have to compute a z-coordinate or march any rays: the mesh and the rasterizer already did the hard geometric work, and your shader only decides color. That is why almost all game shaders look like this.

The numbers you need

Everything the picture depends on is given, so the challenge is the code, not guessing.

Light direction
normalize(float3(0.6, 0.8, 0.5))
Base color
float3(0.9, 0.45, 0.3)
Brightness
base * (0.15 + 0.85 * diffuse)
