Fresnel rim glow

You will build: A dark blue knot with a cyan glow around the edges.

Start this lesson All lessons

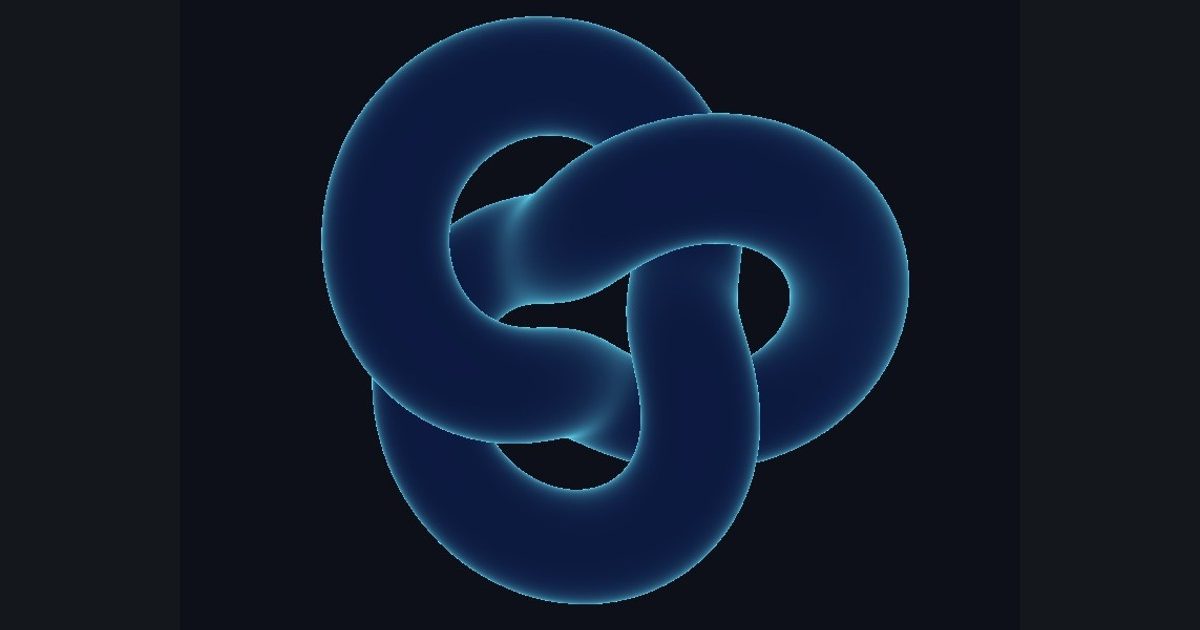

The picture produced by the shader in the lesson "Fresnel rim glow"
The target picture. In the lesson you write the shader that draws it, and a match bar shows how close you are.

Surfaces seen at a grazing angle (edges of the silhouette) look brighter and more reflective: the Fresnel effect. It is one of the cheapest ways to make something feel glossy, glassy or magical.

When the normal faces the camera, dot(i_normal, i_viewDir) is 1; at the silhouette it is 0. So 1 - dot(...) is bigger at the edges, and pow(..., 3.0) sharpens it.

The numbers you need

Everything the picture depends on is given, so the challenge is the code, not guessing.

Fresnel
pow(1.0 - saturate(dot(i_normal, i_viewDir)), 3.0)
Colors
lerp(float3(0.05, 0.1, 0.25), float3(0.4, 0.9, 1.0), fresnel)

Try it in your own language

The lesson is written once and shown in every language. Pick yours: Unity (Built-in), Unity (URP), Unreal, Shadertoy / WebGL, OpenGL (LWJGL, raylib), three.js, GameMaker, LÖVE (Lua), Godot, Apple (iOS, macOS), WebGPU / Bevy.

Start coding

Go deeper

Concept explainers with a live example: Fresnel effect.

Part of the learning path: From Shadertoy to Unity.
