Dissolve effect

The sphere burns away: noise decides which pixels vanish (discard) and the edges glow orange.

Play this challenge All challenges

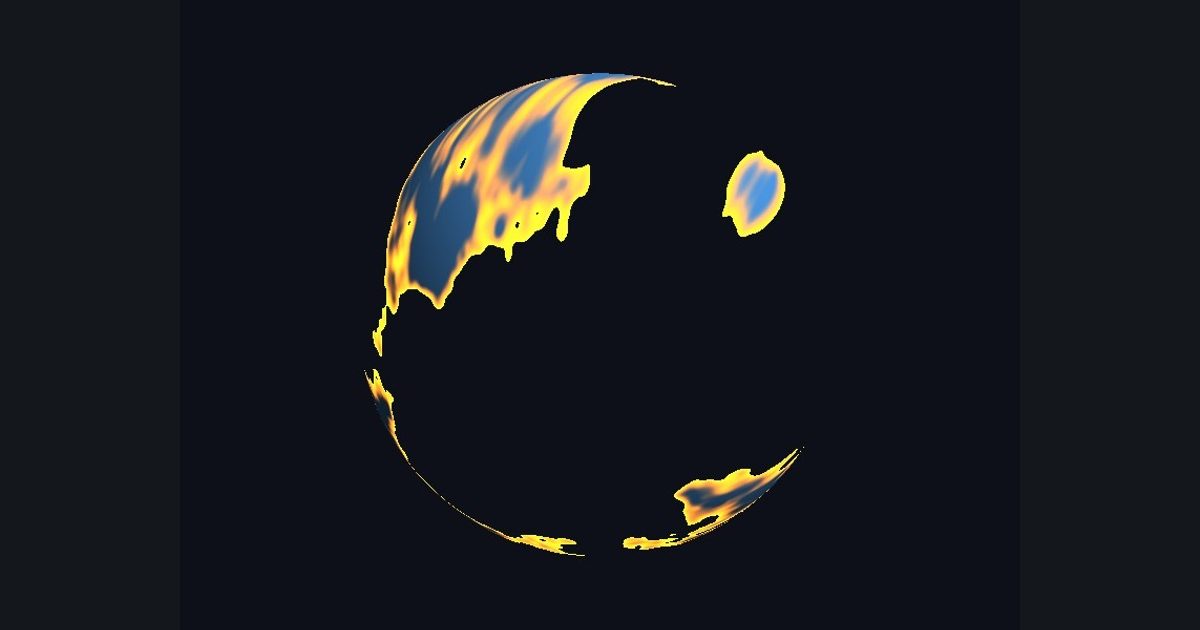

The target picture for the shader challenge "Dissolve effect"
Recreate this picture. You pass at a 99% match, then try to write it in fewer characters than the par.

How this challenge works

You write a fragment shader that draws the picture above, live in your browser. A match bar shows how close you are, and the score combines accuracy, code size (the par is 921 characters in Unity (Built-in)) and GPU speed. Work in HLSL, GLSL, WGSL, Metal or Godot and export the result when you are done.

The numbers you need

Noise
n = fbm(i_worldPos.xy * 2.0 + i_worldPos.z)
Threshold
thr = 0.3 + 0.3 * sin(time * 0.8)
Cut
if (n < thr) discard;
Edge
edge = 1.0 - smoothstep(0.0, 0.06, n - thr)
Surface
float3(0.3, 0.6, 0.9) * (0.2 + 0.8 * diffuse), light normalize(float3(0.6, 0.8, 0.5)), i_normal
Glow
lerp(surface, float3(1.0, 0.5, 0.1) * 2.0, edge)

Helper functions provided

The toolbox has: hash(), vnoise(), fbm(). Add them above your frag function with one click.

Solve it in your language

Unity (Built-in), Unity (URP), Unreal, Shadertoy / WebGL, OpenGL (LWJGL, raylib), three.js, GameMaker, LÖVE (Lua), Godot, Apple (iOS, macOS), WebGPU / Bevy.

Start coding
