Medium EffectsAnimated
Spinning grid with a pulsing brightness

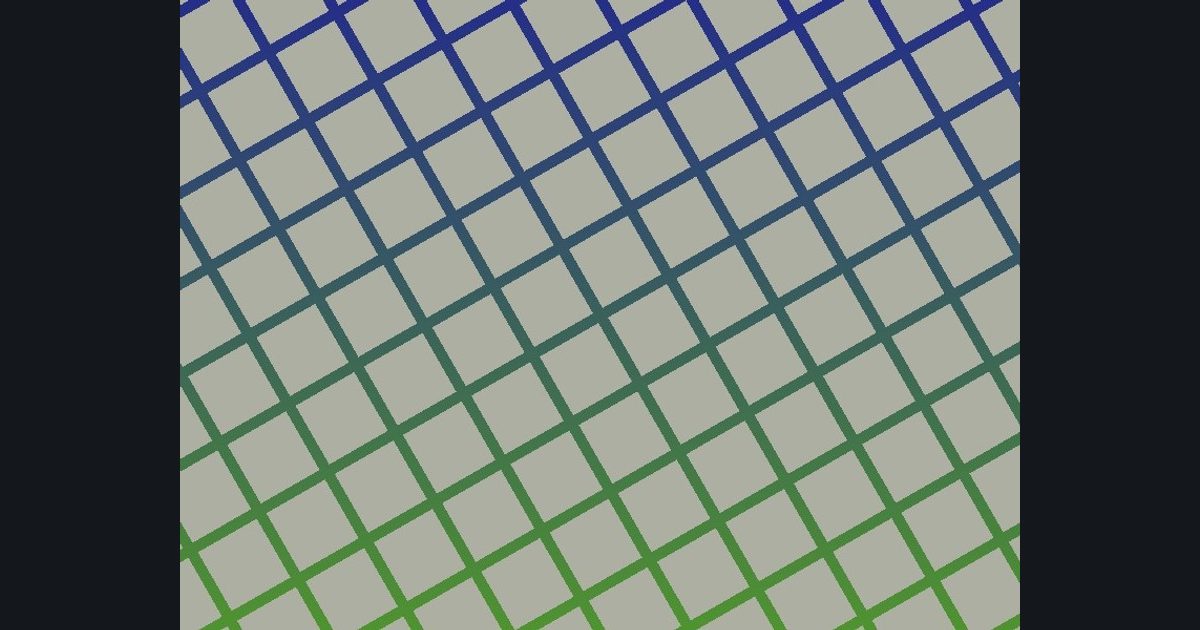

A picture built in steps: spin, then draw grid, then color it, then finish with a pulsing brightness. Every step is listed below with its exact numbers.
How this challenge works
You write a fragment shader that draws the picture above, live in your browser. A match bar shows how close you are, and the score combines accuracy, code size (the par is 435 characters in Unity (Built-in)) and GPU speed. Work in HLSL, GLSL, WGSL, Metal or Godot and export the result when you are done.
The numbers you need
- Space
p = (uv - 0.5) * float2(aspect, 1.0)- Step 1: Spin
turn p by time * 0.4 radians: c = cos(angle), s = sin(angle), p = float2(c * p.x + s * p.y, -s * p.x + c * p.y)- Step 2: Pattern
e = abs(frac(p * 8.0) - 0.5); m = step(0.43, max(e.x, e.y)) (lines on the cell borders)- Step 3: Colors
lerp(float3(0.94, 0.95, 0.88), lerp(float3(0.43, 0.8, 0.26), float3(0.2, 0.25, 0.74), uv.y), m)- Step 4: Finish
col *= 0.75 + 0.25 * sin(time * 2.5)
Solve it in your language
Unity (Built-in), Unity (URP), Unreal, Shadertoy / WebGL, OpenGL (LWJGL, raylib), three.js, GameMaker, LÖVE (Lua), Godot, Apple (iOS, macOS), WebGPU / Bevy.
Start coding
