Easy PatternsAnimated

Scrolling diamond

A picture built in steps: scroll, then draw diamond, then color it. Every step is listed below with its exact numbers.

Play this challenge All challenges

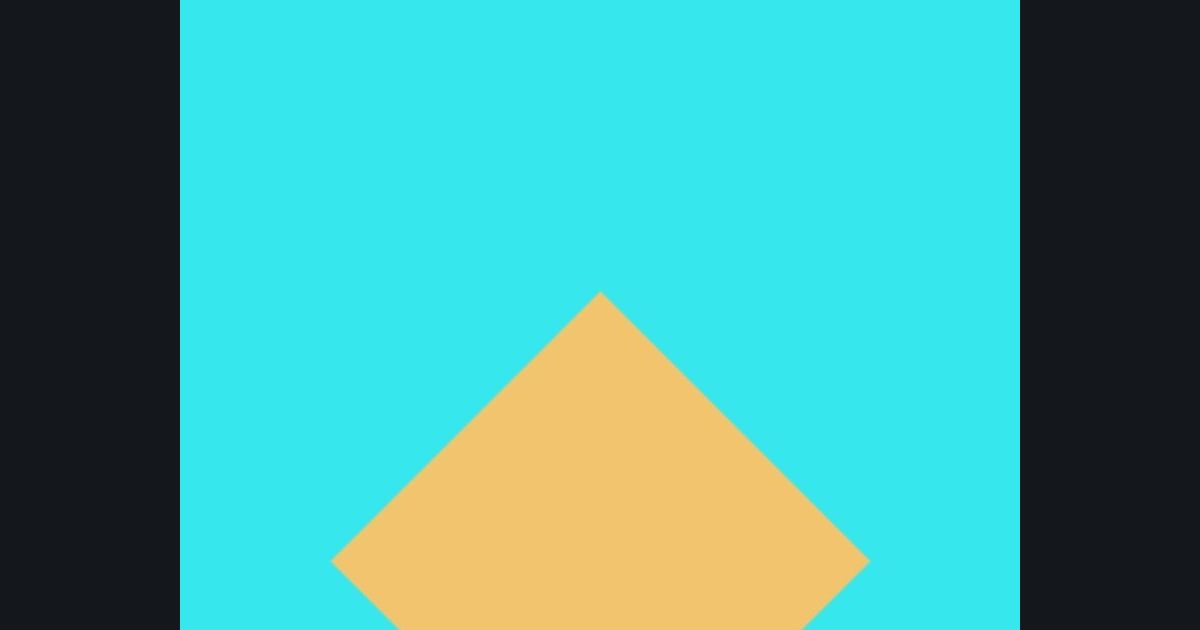

The target picture for the shader challenge "Scrolling diamond" — Recreate this picture. You pass at a 99% match, then try to write it in fewer characters than the par.

How this challenge works

You write a fragment shader that draws the picture above, live in your browser. A match bar shows how close you are, and the score combines accuracy, code size (the par is 280 characters in Unity (Built-in)) and GPU speed. Work in HLSL, GLSL, WGSL, Metal or Godot and export the result when you are done.

The numbers you need

Space: p = (uv - 0.5) * float2(aspect, 1.0)
Step 1: Scroll: p.y += time * 0.3
Step 2: Pattern: d = (abs(p.x) + abs(p.y)) * 0.7071 - 0.3; m = 1.0 - smoothstep(0.0, 0.006, d)
Step 3: Colors: lerp(float3(0.21, 0.91, 0.93), float3(0.95, 0.77, 0.43), m)

Solve it in your language

Unity (Built-in), Unity (URP), Unreal, Shadertoy / WebGL, OpenGL (LWJGL, raylib), three.js, GameMaker, LÖVE (Lua), Godot, Apple (iOS, macOS), WebGPU / Bevy.
