Hard EffectsAnimated
Polar pulsing zigzag stripes with a border

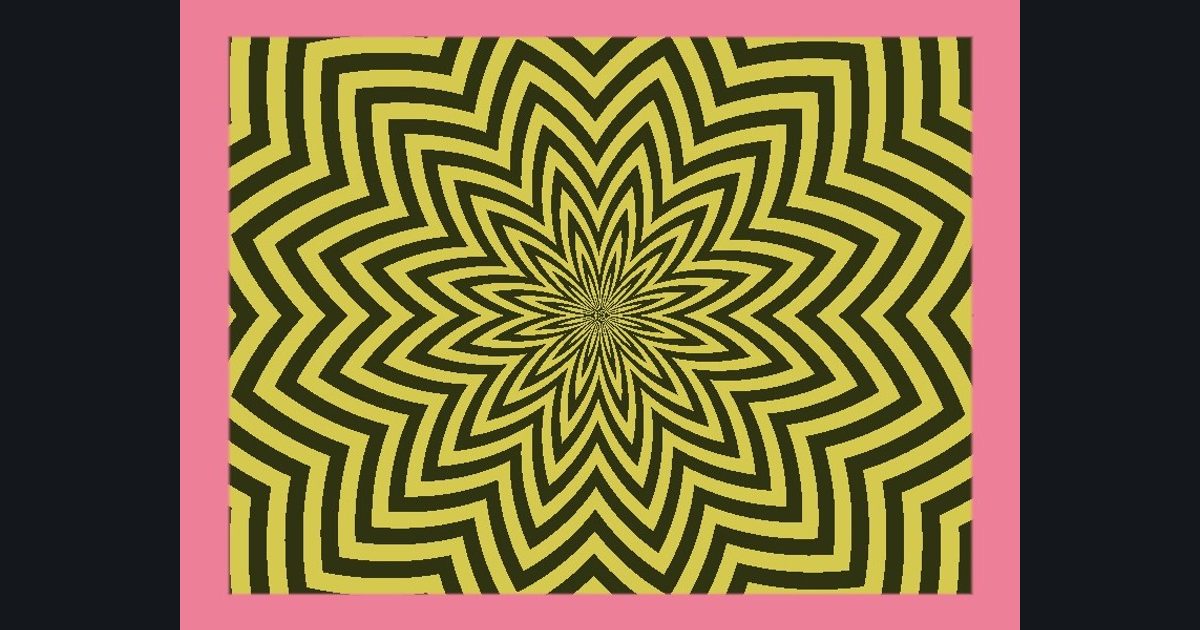

A picture built in steps: polar coordinates, then zoom in and out, then draw zigzag stripes, then color it, then finish with a border. Every step is listed below with its exact numbers.
How this challenge works
You write a fragment shader that draws the picture above, live in your browser. A match bar shows how close you are, and the score combines accuracy, code size (the par is 475 characters in Unity (Built-in)) and GPU speed. Work in HLSL, GLSL, WGSL, Metal or Godot and export the result when you are done.
The numbers you need
- Space
p = (uv - 0.5) * float2(aspect, 1.0)- Step 1: Polar coordinates
p = float2(atan2(p.y, p.x) / 3.1415927, length(p) * 2.0) (x = angle from -1 to 1, y = distance)- Step 2: Zoom in and out
p *= 1.0 + 0.35 * sin(time * 2.0)- Step 3: Pattern
m = step(0.5, frac((p.y + abs(frac(p.x * 5.0) - 0.5) * 0.55) * 6.0))- Step 4: Colors
lerp(float3(0.19, 0.2, 0.07), float3(0.84, 0.79, 0.31), m)- Step 5: Finish
edge = min(min(uv.x, 1.0 - uv.x), min(uv.y, 1.0 - uv.y)); col = lerp(float3(0.93, 0.5, 0.6), col, smoothstep(0.055, 0.061, edge))
Solve it in your language
Unity (Built-in), Unity (URP), Unreal, Shadertoy / WebGL, OpenGL (LWJGL, raylib), three.js, GameMaker, LÖVE (Lua), Godot, Apple (iOS, macOS), WebGPU / Bevy.
Start coding
