Hard Effects

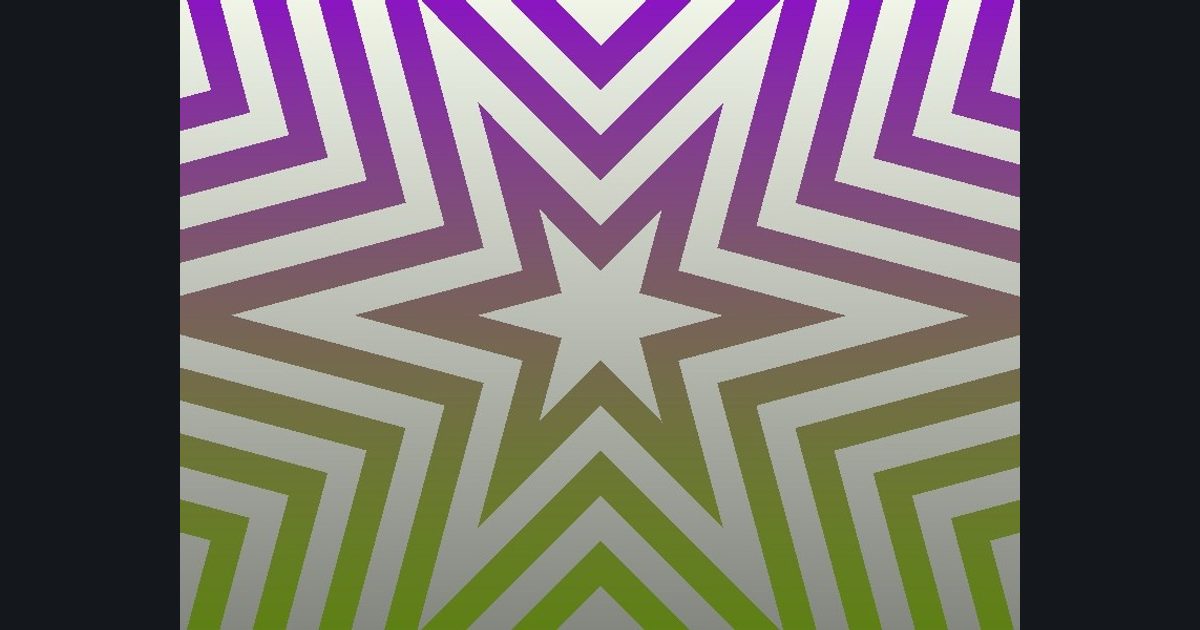

6-way kaleidoscope of stripes with a fade to dark at the bottom
A picture built in steps: kaleidoscope, then draw stripes, then color it, then finish with a fade to dark at the bottom. Every step is listed below with its exact numbers.
How this challenge works
You write a fragment shader that draws the picture above, live in your browser. A match bar shows how close you are, and the score combines accuracy, code size (the par is 417 characters in Unity (Built-in)) and GPU speed. Work in HLSL, GLSL, WGSL, Metal or Godot and export the result when you are done.
The numbers you need
- Space
p = (uv - 0.5) * float2(aspect, 1.0)- Step 1: Kaleidoscope
a = atan2(p.y, p.x); a = abs(fmod(a + 6.2831853, 1.047) - 0.524); p = length(p) * float2(cos(a), sin(a)) (6 mirrored wedges)- Step 2: Pattern
m = step(0.5, frac(dot(p, float2(1.0, -1.0)) * 7.0))- Step 3: Colors
lerp(float3(0.94, 0.96, 0.91), lerp(float3(0.67, 0.91, 0.15), float3(0.54, 0.08, 0.76), uv.y), m)- Step 4: Finish
col *= 0.55 + 0.45 * uv.y
Solve it in your language
Unity (Built-in), Unity (URP), Unreal, Shadertoy / WebGL, OpenGL (LWJGL, raylib), three.js, GameMaker, LÖVE (Lua), Godot, Apple (iOS, macOS), WebGPU / Bevy.
Start coding
