Hard Effects

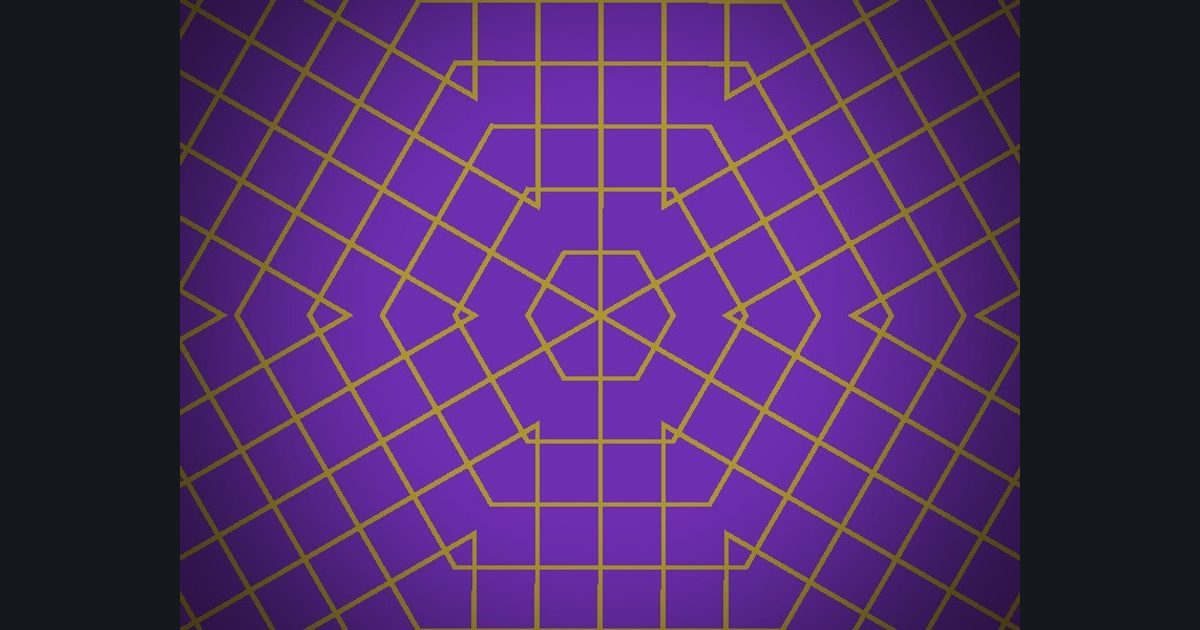

6-way kaleidoscope of grid with a dark vignette
A picture built in steps: kaleidoscope, then draw grid, then color it, then finish with a dark vignette. Every step is listed below with its exact numbers.
How this challenge works
You write a fragment shader that draws the picture above, live in your browser. A match bar shows how close you are, and the score combines accuracy, code size (the par is 465 characters in Unity (Built-in)) and GPU speed. Work in HLSL, GLSL, WGSL, Metal or Godot and export the result when you are done.
The numbers you need
- Space
p = (uv - 0.5) * float2(aspect, 1.0)- Step 1: Kaleidoscope
a = atan2(p.y, p.x); a = abs(fmod(a + 6.2831853, 1.047) - 0.524); p = length(p) * float2(cos(a), sin(a)) (6 mirrored wedges)- Step 2: Pattern
e = abs(frac(p * 10.0) - 0.5); m = step(0.46, max(e.x, e.y)) (lines on the cell borders)- Step 3: Colors
lerp(float3(0.43, 0.18, 0.69), float3(0.67, 0.59, 0.17), m)- Step 4: Finish
col *= 1.0 - 0.6 * smoothstep(0.3, 0.85, length(s)), s = (uv - 0.5) * float2(aspect, 1.0)
Solve it in your language
Unity (Built-in), Unity (URP), Unreal, Shadertoy / WebGL, OpenGL (LWJGL, raylib), three.js, GameMaker, LÖVE (Lua), Godot, Apple (iOS, macOS), WebGPU / Bevy.
Start coding
