Easy Patterns
5×5 tiled diamond lattice

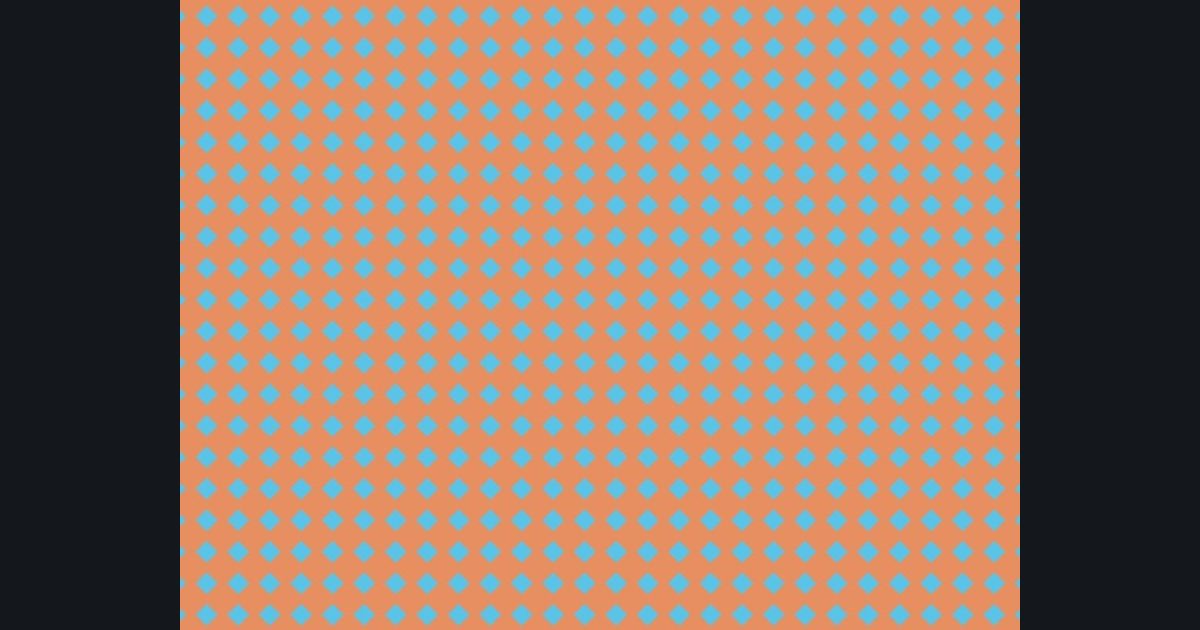

A picture built in steps: tile, then draw diamond lattice, then color it. Every step is listed below with its exact numbers.
How this challenge works
You write a fragment shader that draws the picture above, live in your browser. A match bar shows how close you are, and the score combines accuracy, code size (the par is 271 characters in Unity (Built-in)) and GPU speed. Work in HLSL, GLSL, WGSL, Metal or Godot and export the result when you are done.
The numbers you need
- Space
p = (uv - 0.5) * float2(aspect, 1.0)- Step 1: Tile
p = frac(p * 5.0 + 0.5) - 0.5 (repeat the picture 5 times across)- Step 2: Pattern
e = abs(frac(p * 4.0) - 0.5); m = step(0.36, e.x + e.y)- Step 3: Colors
lerp(float3(0.35, 0.77, 0.91), float3(0.91, 0.56, 0.38), m)
Solve it in your language
Unity (Built-in), Unity (URP), Unreal, Shadertoy / WebGL, OpenGL (LWJGL, raylib), three.js, GameMaker, LÖVE (Lua), Godot, Apple (iOS, macOS), WebGPU / Bevy.
Start coding
