Polar coordinates

You will build: Build the spinning pinwheel: wedge pattern sin(a × 6 + time × 2), clipped to a disc of radius 0.4 with a soft edge.

Start this lesson All lessons

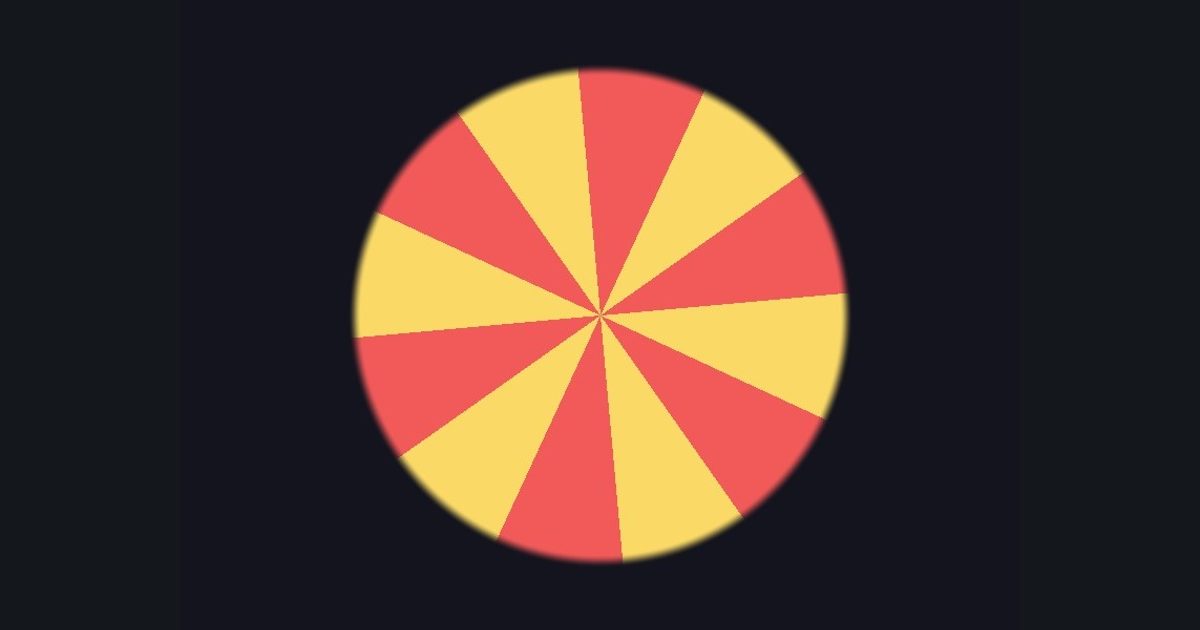

The picture produced by the shader in the lesson "Polar coordinates"
The target picture. In the lesson you write the shader that draws it, and a match bar shows how close you are.

Instead of (x, y) you can describe a point as (angle, radius). Radius is just length(p); the angle comes from atan2(p.y, p.x) (range −π..π).

Anything that depends on angle repeats around the center: pinwheels, flowers, radar sweeps, spiral galaxies. And anything that depends on radius makes rings (you already did that). Mix them for spirals.

float2 p = (uv - 0.5) * float2(aspect, 1.0);
float a = atan2(p.y, p.x);
float spokes = step(0.0, sin(a * 6.0));   // 12 wedges alternating on/off

Add + time * 2.0 inside the sin and the whole thing rotates.

The numbers you need

Everything the picture depends on is given, so the challenge is the code, not guessing.

Colors
float3(0.95,0.35,0.35) / float3(0.98,0.85,0.4)
Background
float3(0.08, 0.08, 0.12)
Disc edge
smoothstep(0.38, 0.4, r)

Try it in your own language

The lesson is written once and shown in every language. Pick yours: Unity (Built-in), Unity (URP), Unreal, Shadertoy / WebGL, OpenGL (LWJGL, raylib), three.js, GameMaker, LÖVE (Lua), Godot, Apple (iOS, macOS), WebGPU / Bevy.

Start coding

Go deeper

Concept explainers with a live example: polar coordinates.

Part of the learning path: Shader art basics.
