Medium EffectsAnimated

Scrolling pinched wavy bands with scanlines

A picture built in steps: scroll, then pinch, then draw wavy bands, then color it, then finish with scanlines. Every step is listed below with its exact numbers.

Play this challenge All challenges

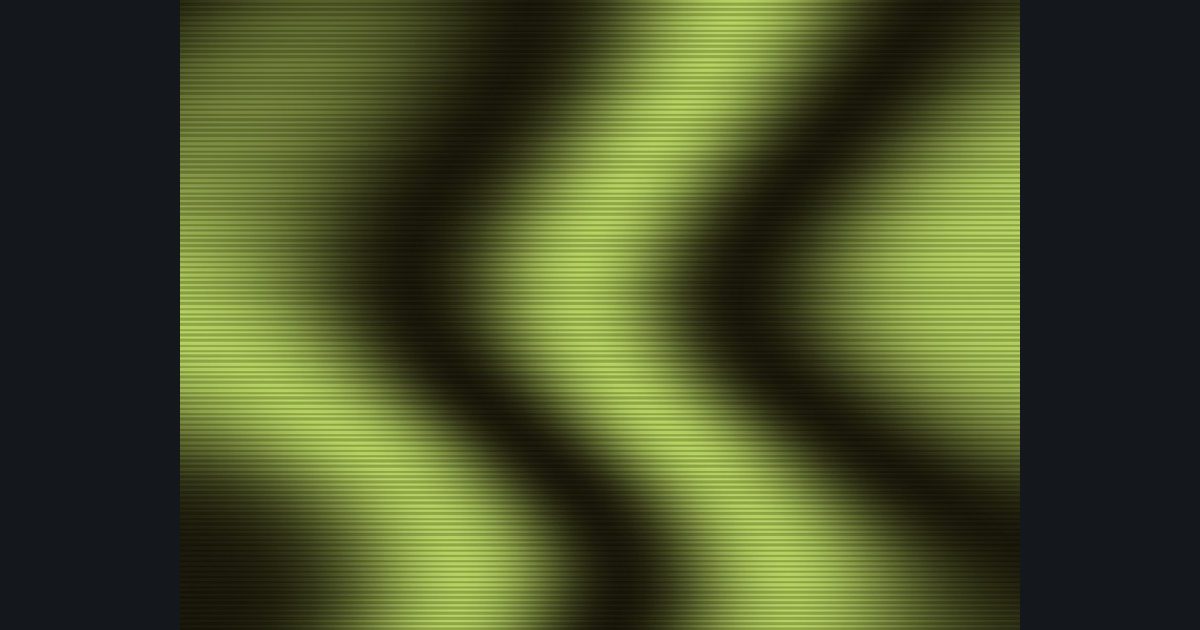

The target picture for the shader challenge "Scrolling pinched wavy bands with scanlines" — Recreate this picture. You pass at a 99% match, then try to write it in fewer characters than the par.

How this challenge works

You write a fragment shader that draws the picture above, live in your browser. A match bar shows how close you are, and the score combines accuracy, code size (the par is 330 characters in Unity (Built-in)) and GPU speed. Work in HLSL, GLSL, WGSL, Metal or Godot and export the result when you are done.

The numbers you need

Space: p = (uv - 0.5) * float2(aspect, 1.0)
Step 1: Scroll: p.y += time * 0.15
Step 2: Pinch: p *= 1.0 + -0.6 * dot(p, p)
Step 3: Pattern: m = 0.5 + 0.5 * sin(p.x * 13.0 + sin(p.y * 7.0) * 2.0)
Step 4: Colors: lerp(float3(0.11, 0.1, 0.04), float3(0.71, 0.82, 0.37), m)
Step 5: Finish: col *= 0.8 + 0.2 * step(0.5, frac(uv.y * 120.0))

Solve it in your language

Unity (Built-in), Unity (URP), Unreal, Shadertoy / WebGL, OpenGL (LWJGL, raylib), three.js, GameMaker, LÖVE (Lua), Godot, Apple (iOS, macOS), WebGPU / Bevy.
