Medium EffectsAnimated
Pulsing zigzag stripes with a border

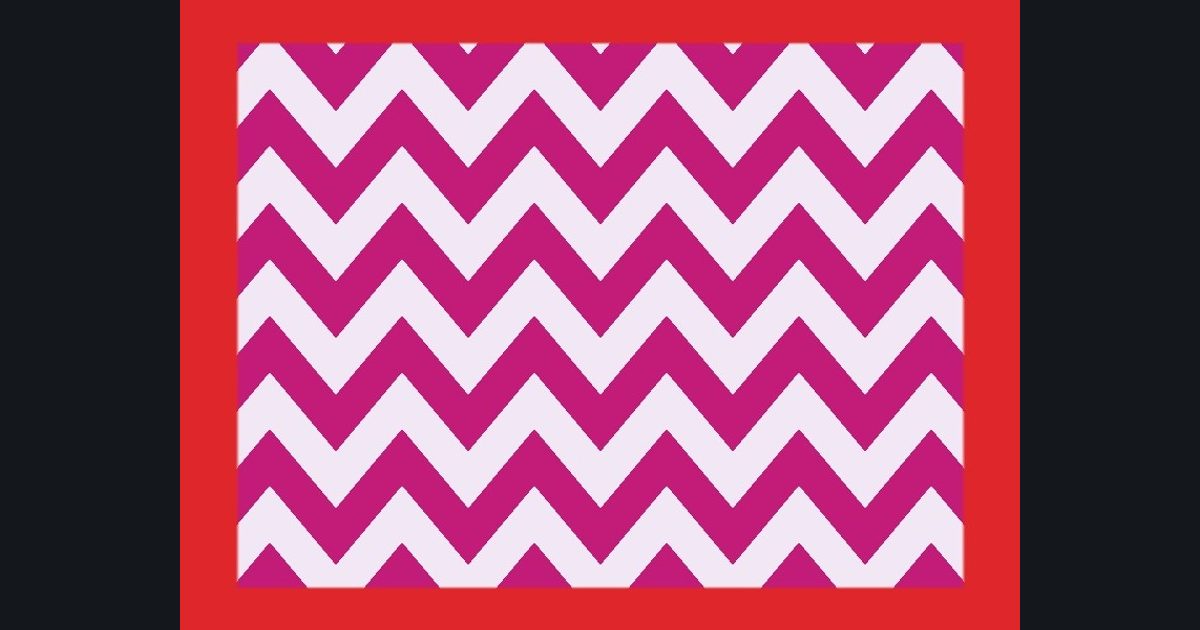

A picture built in steps: zoom in and out, then draw zigzag stripes, then color it, then finish with a border. Every step is listed below with its exact numbers.
How this challenge works
You write a fragment shader that draws the picture above, live in your browser. A match bar shows how close you are, and the score combines accuracy, code size (the par is 418 characters in Unity (Built-in)) and GPU speed. Work in HLSL, GLSL, WGSL, Metal or Godot and export the result when you are done.
The numbers you need
- Space
p = (uv - 0.5) * float2(aspect, 1.0)- Step 1: Zoom in and out
p *= 1.0 + 0.3 * sin(time * 3.0)- Step 2: Pattern
m = step(0.5, frac((p.y + abs(frac(p.x * 6.0) - 0.5) * 0.2) * 7.0))- Step 3: Colors
lerp(float3(0.95, 0.91, 0.96), float3(0.76, 0.11, 0.47), m)- Step 4: Finish
edge = min(min(uv.x, 1.0 - uv.x), min(uv.y, 1.0 - uv.y)); col = lerp(float3(0.87, 0.15, 0.17), col, smoothstep(0.065, 0.071, edge))
Solve it in your language
Unity (Built-in), Unity (URP), Unreal, Shadertoy / WebGL, OpenGL (LWJGL, raylib), three.js, GameMaker, LÖVE (Lua), Godot, Apple (iOS, macOS), WebGPU / Bevy.
Start coding
