Hard 3DAnimated
Metaballs (smooth union)
Three blobs that merge like liquid. Raymarch them with a smooth minimum.
How this challenge works

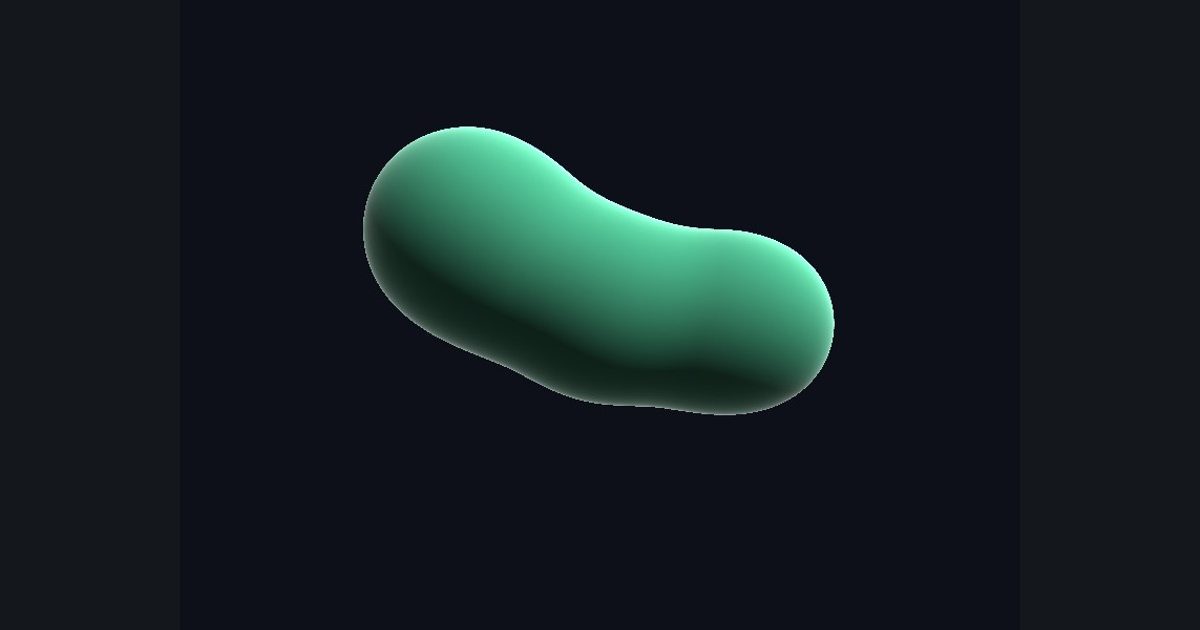

You write a fragment shader that draws the picture above, live in your browser. A match bar shows how close you are, and the score combines accuracy, code size (the par is 1185 characters in Unity (Built-in)) and GPU speed. Work in HLSL, GLSL, WGSL, Metal or Godot and export the result when you are done.
The numbers you need
- smin
h = max(k - abs(a-b), 0.0)/k; return min(a,b) - h*h*k*0.25;- k
0.8- Ball 1
center float3(sin(time)*0.9, cos(time*1.3)*0.4, 0), radius 0.55- Ball 2
center float3(-sin(time*0.8)*0.9, sin(time*1.1)*0.5, 0), radius 0.65- Ball 3
center at the origin, radius 0.45- Color
float3(0.35,0.85,0.65) * (0.15 + 0.85 * diffuse)- Rim light
pow(1.0 - max(dot(n, -rd), 0.0), 3.0) * 0.5 added to color- Camera / light
same as the Raymarching lesson
Helper functions provided
The toolbox has: calcNormal(), smin(). Add them above your frag function with one click.
Solve it in your language
Unity (Built-in), Unity (URP), Unreal, Shadertoy / WebGL, OpenGL (LWJGL, raylib), three.js, GameMaker, LÖVE (Lua), Godot, Apple (iOS, macOS), WebGPU / Bevy.
Start coding
